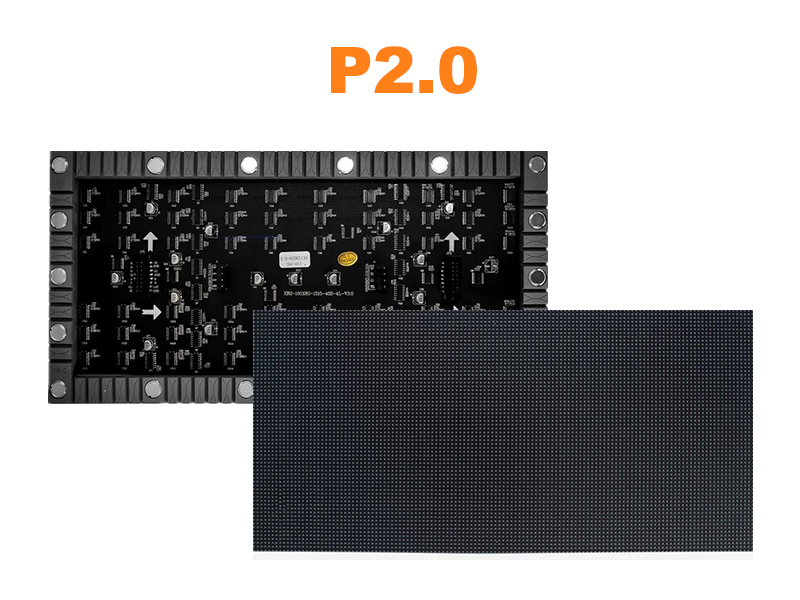

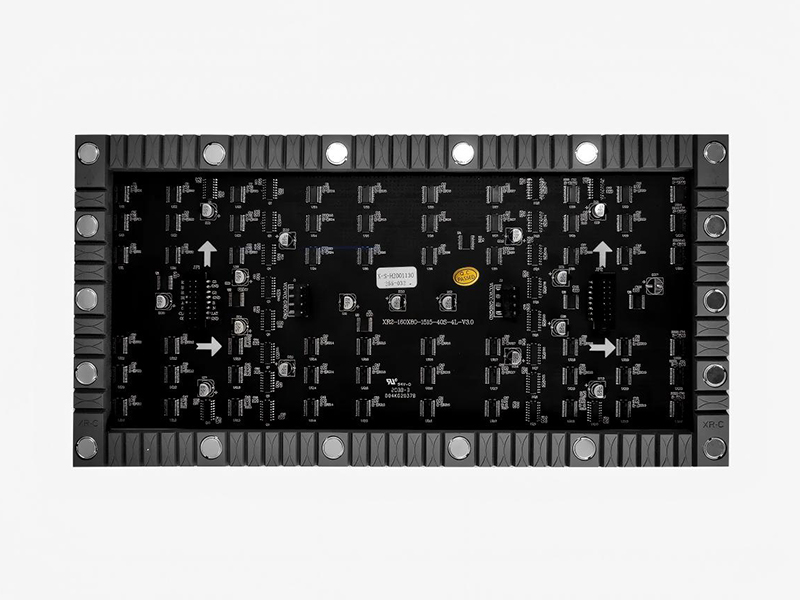

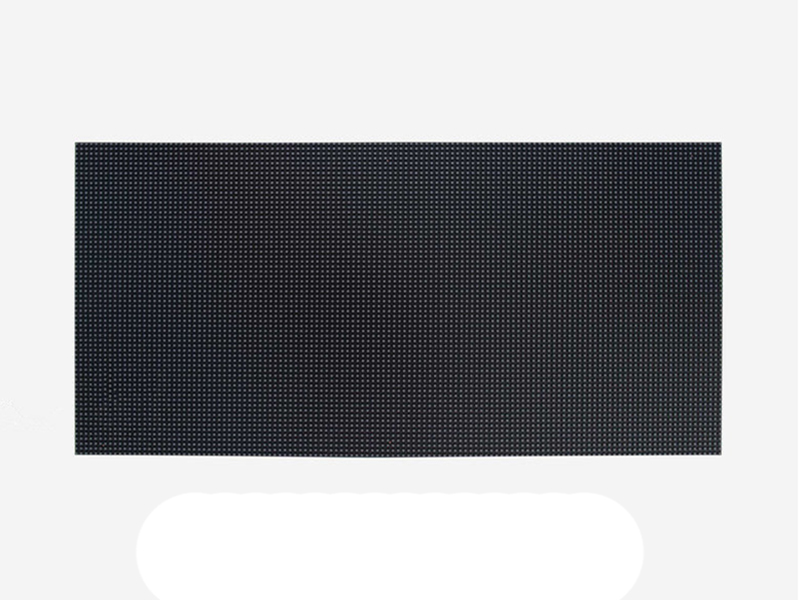

SMD P2 Flexible LED Module

An optimal entry into flexible LED display technology, offering a proven balance of image quality, creative freedom, and project affordability. Its 2.0mm pixel pitch is a versatile choice for impactful large-format installations where viewing distance allows.

Parámetros del producto

marca :
Hoozoe
Modelo :
SMD P2 Flexible LED Module
Pedido (MOQ) :
80 pcs
Pago :
TT
Origen del producto :
Zhangzhou Fujian
Color :
Full color
Puerto de embarque :
Xiamen
Plazo de entrega :
7-15 days
Peso :
256g

CONSULTE AHORA

Features

Proven & Cost-Effective Pitch: A 2.0mm pixel pitch provides clear and engaging visuals for standard viewing distances (typically 6-20 meters), representing an ideal entry point for large-scale flexible screen projects.

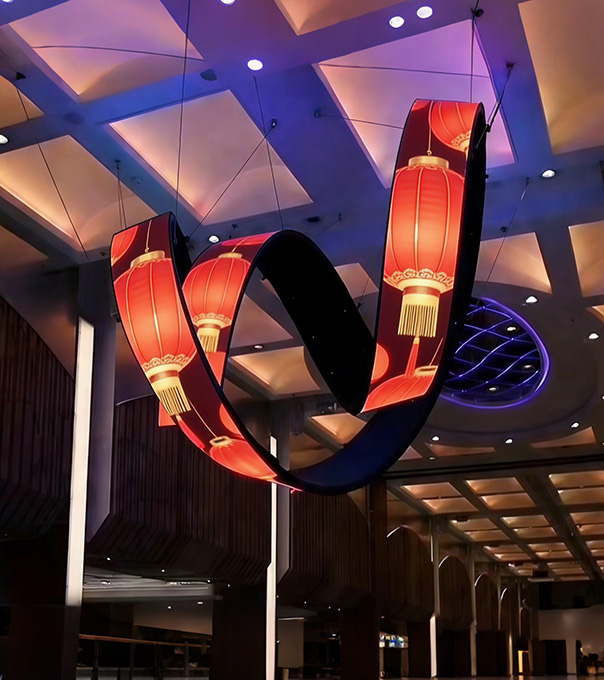

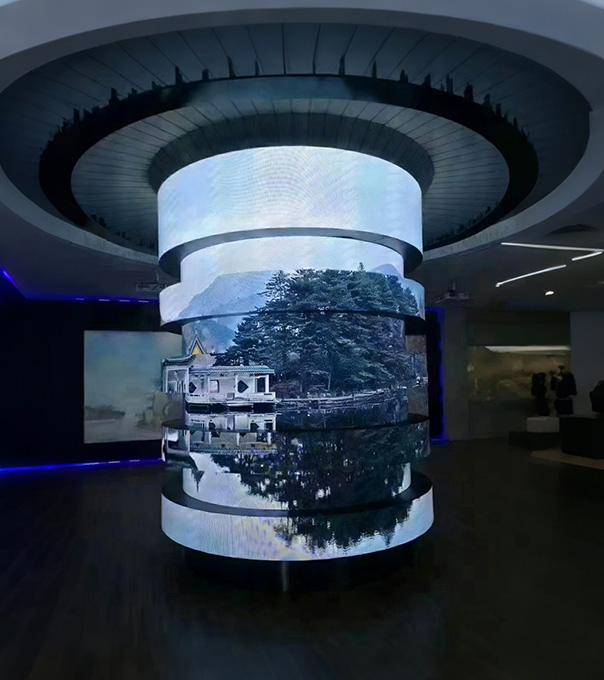

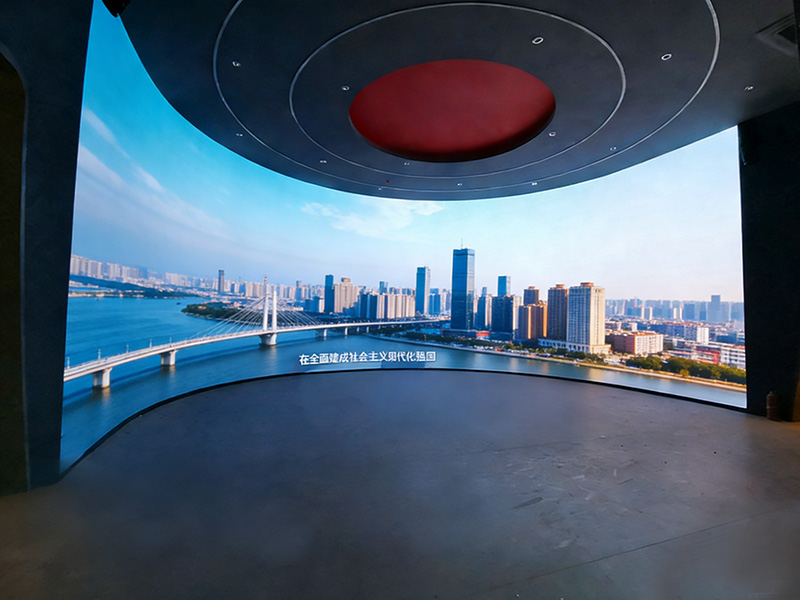

Seamless Curved Installations: The flexible design enables smooth integration onto curved architectural elements, transforming spaces with dynamic shapes and immersive visuals.

Stable & Broadcast-Ready: High refresh rate technology (≥3840Hz) ensures content appears smooth and flicker-free for live events and camera capture, delivering a professional viewing experience.

Designed for Deployment: Rugged construction ensures reliability, while the lightweight, modular format allows for rapid assembly and straightforward front/rear maintenance, streamlining large-project execution.

Ideal for: Event stages and backdrops, large retail media walls, corporate atrium displays, broadcast studio sets, and other applications requiring large-scale visual impact combined with creative form factors.

Parameter

	Parameter Name	Product Parameter
Screen	Maximum power consumption	490 W/㎡
	Usage environment	Indoor
	Viewing distance	≥2.5m
	Blind spot rate	Less than 0.03%
	Brightness	≥ 500 cd/㎡
	Average power consumption of the screen	200-290 W/㎡
	Horizontal viewing angle of screen	120±10 degree
	Vertical viewing angle of the screen	120±10 degree
Module	Pixel Pitch	2.0mm
	Pixel Density	250000 Dots/㎡
	Resolution	160x80=12800 Dots
	Structural characteristics	Integrated light drive system
	Pixel composition	1R1G1B
	Drive mode	1/40 scan constant current drive
	Input voltage	4.2-5.5 V
	Kit materials	Polycarbonate PC material
	Weight	256 g
	Power of unit module	16 W
	Size (Long, Wide, and Thick)	3201607.65（mm)
	Maximum current	5.2 A
	Use 4.2V/5V Switching Power Supply with Load Quantity	<6pieces P2.0 full-color unit boards
System	Frame Frequency	>60 frames per second
	Refresh frequency	≥3840Hz
	Control mode	Computer control, one-to-one correspondence point by point, video synchronization, real-time display
	Brightness adjustment	256 level manual/automatic
Driver chip mode	Buffer 74HC245, decoding line tube 5958, PWM constant current FM6363 or LS9930

ETIQUETAS :

Dejar un mensaje

Categorías

Nuevos productos

Productos relacionados

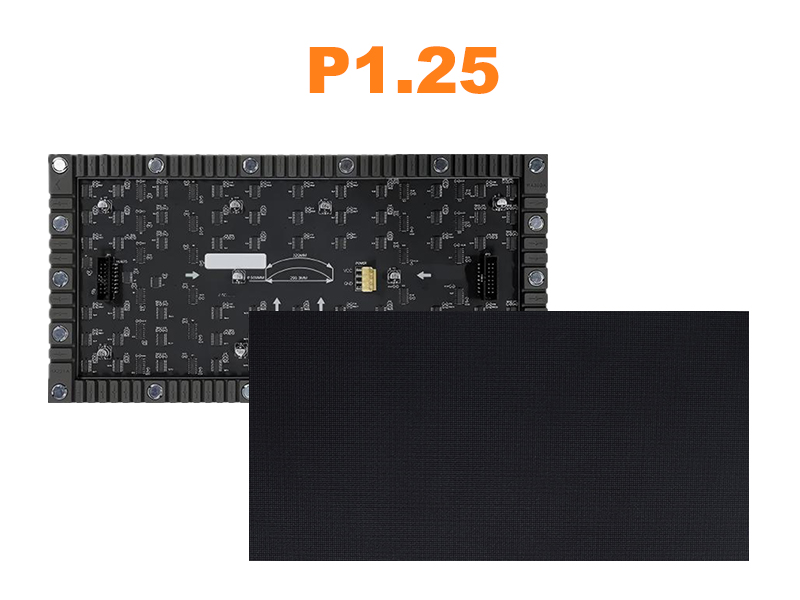

SMD P1.25 Flexible LED Module

A premium flexible LED solution designed for close-viewing, high-detail applications. Its 1.25mm pixel pitch delivers sharp, grain-free images ideal for immersive and creative displays.

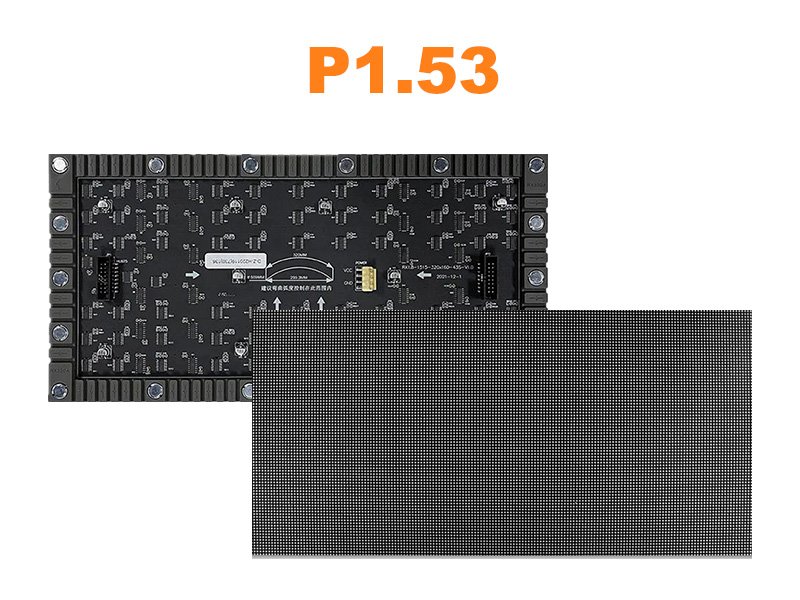

SMD P1.53 Flexible LED Module

A high-performance flexible LED solution designed to deliver sharp visuals at an optimal balance of resolution and value. Its 1.53mm pixel pitch enables clear, detailed images for both standard and creative display applications.

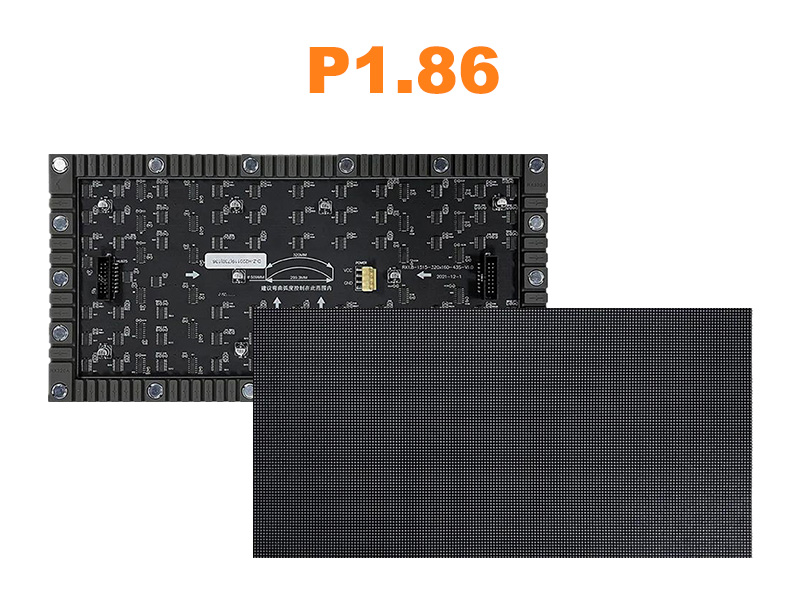

SMD P1.86 Flexible LED Module

An economical yet high-performance flexible LED solution, delivering exceptional value for large-scale projects where resolution and budget are equally important. Its 1.8604mm pixel pitch provides a perfect blend of clarity and cost-effectiveness for both flat and curved installations.
SMD P2 Flexible LED Module

An optimal entry into flexible LED display technology, offering a proven balance of image quality, creative freedom, and project affordability. Its 2.0mm pixel pitch is a versatile choice for impactful large-format installations where viewing distance allows.

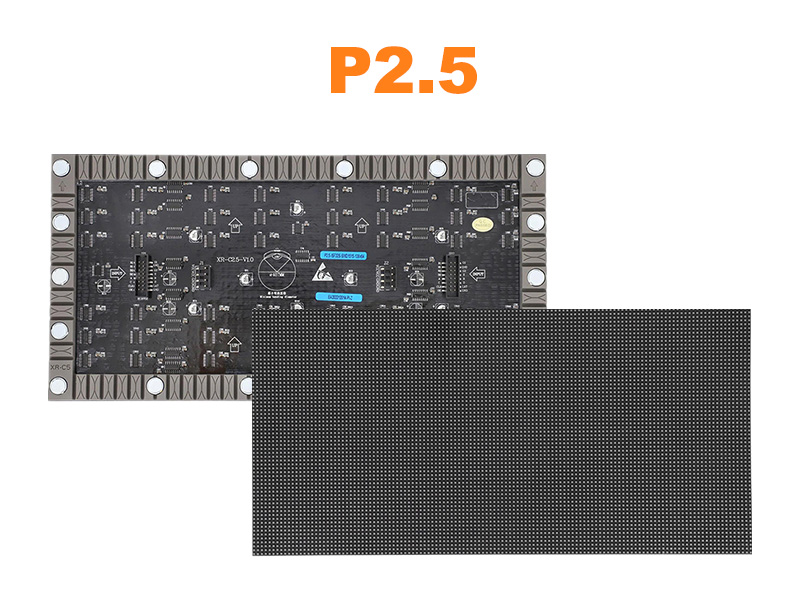

SMD P2.5 Flexible LED Module

A large-format, flexible LED display solution designed for cost-effective installations where visual impact, reliability and creative form are essential. Its 2.5mm pixel pitch delivers compelling clarity at an outstanding value for mid to long-distance viewing.

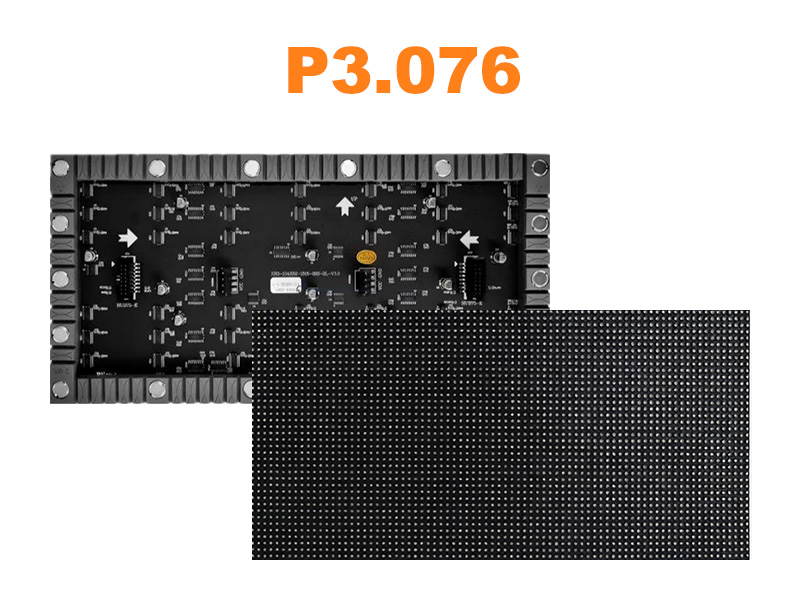

SMD P3.076 Flexible LED Module

A robust and versatile flexible LED solution engineered for large-scale, creative installations where reliability, viewing distance, and dynamic form are key. Its precise 3.076mm pixel pitch delivers a powerful visual impact at outstanding value for long-range applications.

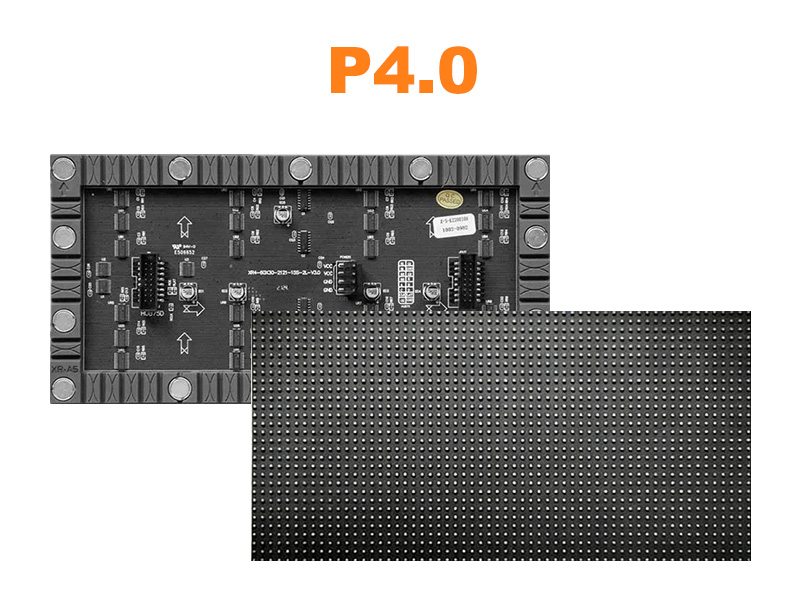

SMD P4 Flexible LED Module
