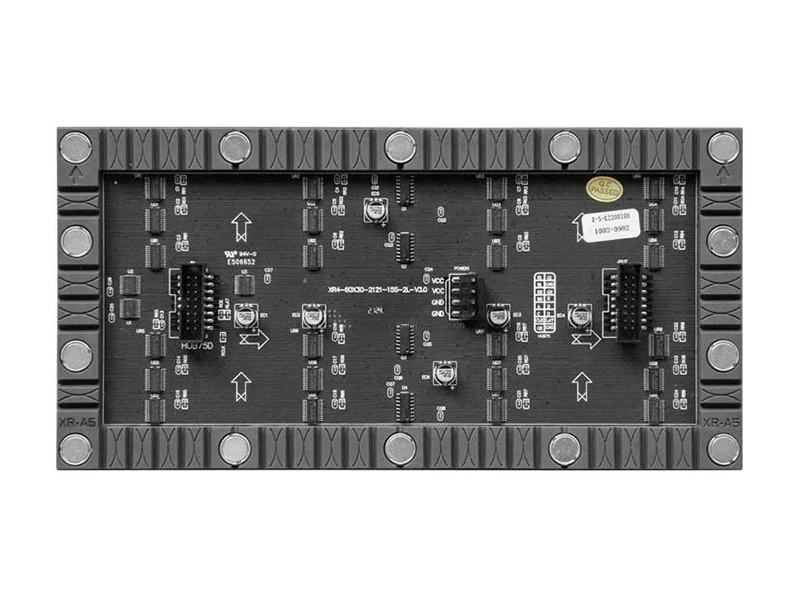

SMD P4 Flexible LED Module

A long-distance flexible LED display solution designed for mega-scale creative and architectural installations. Its 4mm pixel pitch delivers powerful visual impact and messaging clarity at an outstanding value for ultra-long-range viewing applications.

Parámetros del producto

  • marca :

    Hoozoe

  • Modelo :

    SMD P4 Flexible LED Module

  • Pedido (MOQ) :

    80 pcs

  • Pago :

    TT

  • Origen del producto :

    Zhangzhou Fujian

  • Color :

    Full color

  • Puerto de embarque :

    Xiamen

  • Plazo de entrega :

    7-15 days

  • Peso :

    230g
CONSULTE AHORA

Features



  • Ultra-Long-Range Clarity: A 4.0mm pixel pitch ensures excellent content readability and visual impact for viewing distances typically beyond 20 meters, representing the optimal cost-performance choice for monumental flexible display projects.



  • Architectural Integration: The flexible design enables the creation of large-scale curved and custom-shaped canvases, seamlessly blending with building structures for immersive brand spectacles and dynamic architectural lighting.



  • Robust Visual Performance: High refresh rate technology ensures stable, flicker-free visuals for live events. Factory calibration guarantees uniform brightness and color across vast display areas.



  • Engineered for Large Projects: Built for durability and scalability with a modular, lightweight structure that supports rapid deployment, simplified maintenance, and reliable performance in challenging environments.



  • Ideal for: Mega outdoor advertising billboards, stadium façade and roof displays, large concert touring screens, airport and transportation hub media walls, and any project requiring grand-scale visual storytelling with creative form flexibility.



Parameter



  Parameter Name Product Parameter Product Parameter
Screen Maximum power consumption 280 W/㎡ ≤800 W/㎡

Usage environment

 Indoor

Viewing distance

 ≥4.0m 4.0-20m

Blind spot rate

 Less than 0.03%
Brightness ≥ 500 cd/㎡ ≥ 400 cd/㎡
Average power consumption of the screen 100-150 W/㎡  270 W/㎡
Horizontal viewing angle of screen 160±10 degree 160±10 degree

Vertical viewing angle of the screen

 140±10 degree 120±10 degree
Module

Pixel Pitch

 4.0mm 4.0mm

 Pixel Density

 62500 Dots/㎡
Resolution 64x32=2048 Dots 80x40=3200 Dots
Structural characteristics Integrated light drive system
 Pixel composition 1R1G1B
Drive mode 1/16 scan constant current drive 1/20 scan constant current drive
Input voltage 4.5-5 V 5 V

Kit materials

 Polycarbonate PC material
Weight  200 g 230 g
Power of unit module 8.75 W <15W
Size (Long, Wide, and Thick) 256*128*7.6（mm) 256*128*7.65（mm)
Maximum current 1.8 A <4.2 A

Use 4.2V/5V Switching Power Supply with Load Quantity

 <8 pieces P4.0 full-color unit boards

System

Frame Frequency

 >60 frames per second

Refresh frequency

 1920HZ/3840Hz 1920HZ

Control mode

 Computer control, one-to-one correspondence point by point, video synchronization, real-time display

 Brightness adjustment

 256 level manual/automatic
Driver chip mode   Buffer 74HC245, decoding line tube 7258, dual latch constant current IC-6124/9931 Buffer 74HC245, decoding line tube 7258, dual latch constant current IC
