Key Applications:

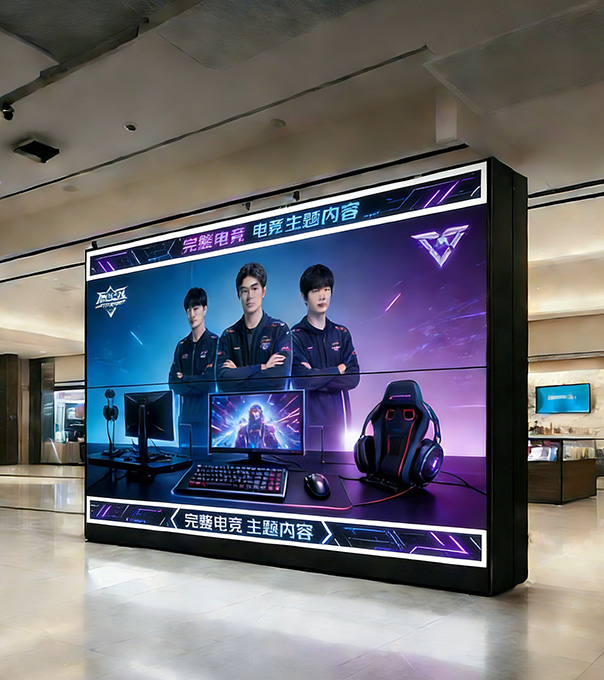

GOB (Glue on Board) LED modules are widely used in adverting, sports stadium, transportation, entertainment, corporate environments, retail, smart cities, healthcare and education.
marca :
HoozoeModelo :
P2.5 GOB LED Display Screen ModulePedido (MOQ) :
40 pcsPago :
TTOrigen del producto :
ChinaColor :
BlackPuerto de embarque :
XiamenPlazo de entrega :
7 daysPeso :
0.5kg

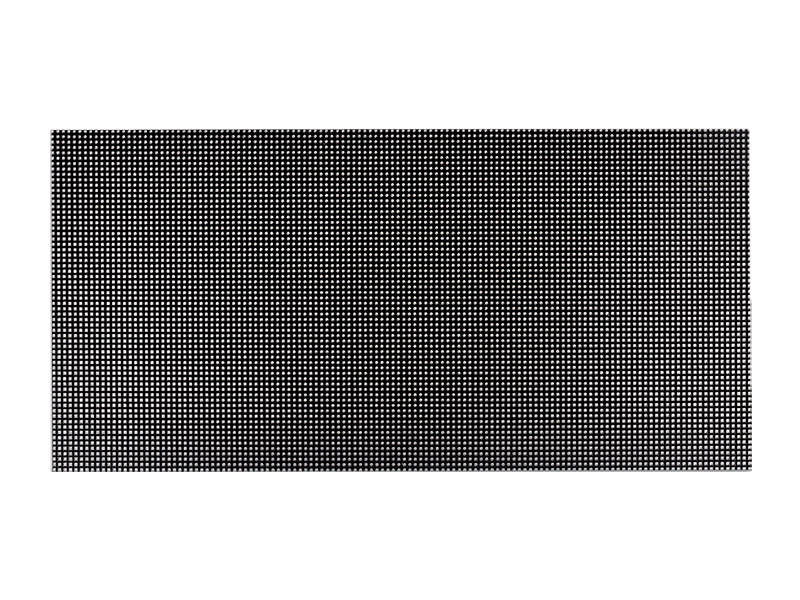

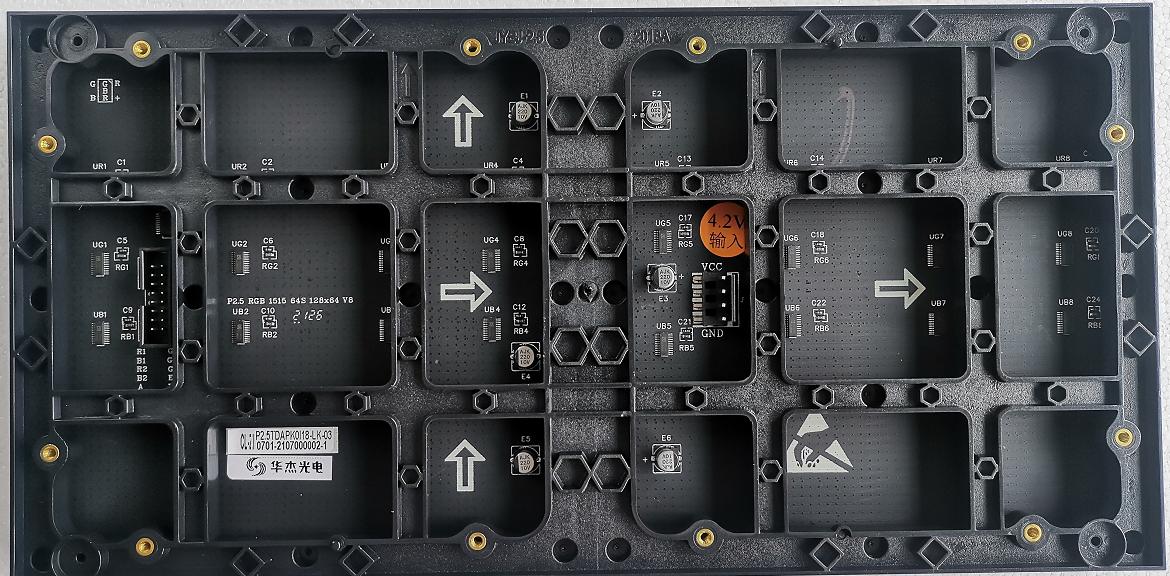

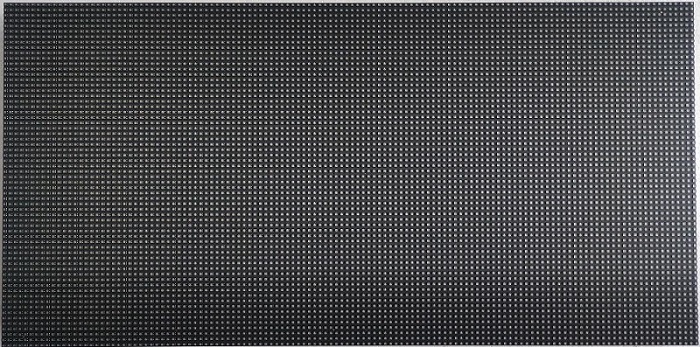

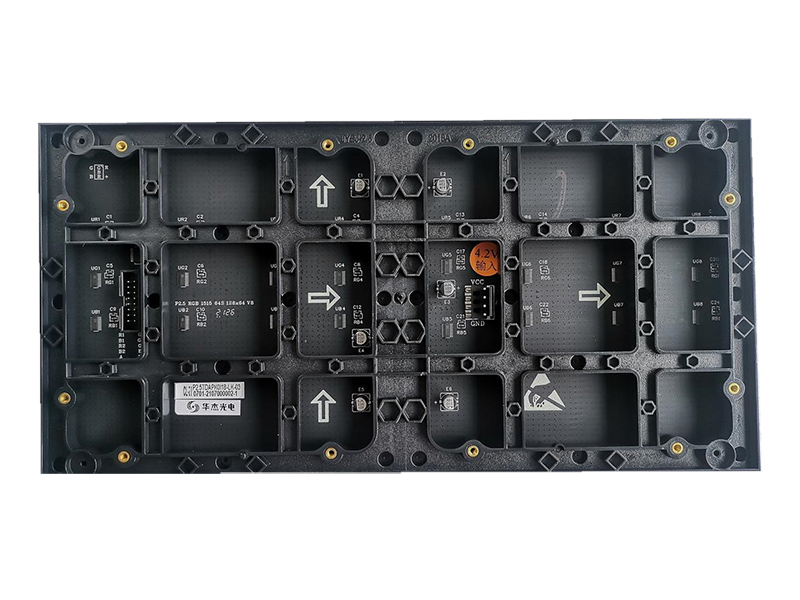

Waterproof P2.5 GOB Indoor Led Display Full Color LED Display Module Indoor Advertising Led Wall Display 320x160mm 1/32 Scan Pixel Pitch 2.5mm
P2.5 GOB Indoor LED Module Parameter
| Parameter Name | Product Parameter | |
| Screen | Maximum power consumption | 322 W/㎡ |
|
Usage environment |
Indoor | |
|
Viewing distance |
≥2.5m | |
|
Blind spot rate |
Less than 0.03% | |
| Brightness | > 500 cd/㎡ | |
| Average power consumption of the screen | 110-170 W/㎡ | |
| Horizontal viewing angle of screen | 120±10 degree | |
|
Vertical viewing angle of the screen |
120±10 degree | |
| Module |
Pixel Pitch |
2.5 mm |
|
Pixel Density |
160000 Dots/㎡ | |
| Resolution | 128x64=8192 Dots | |
| Structural characteristics | Integrated light drive system | |
| Pixel composition | 1R1G1B | |
| Drive mode | 1/32 scan constant current drive | |
| Input voltage | 4.5-5.5 V | |
|
Kit materials |
Polycarbonate PC material | |
| Weight | 374 g | |
| Power of unit module | <16.5 W | |
| Size (Long, Wide, and Thick) | 320*160*16.5（mm) | |
| Maximum current | <4.5 A | |
|
Use 4.2V/5V Switching Power Supply with Load Quantity |
<8 pieces P2.5 full-color unit boards | |
|
System |
Frame Frequency |
>60 frames per second |
|
Refresh frequency |
≥1920Hz |
|
|
Control mode |
Computer control, one-to-one correspondence point by point, video synchronization, real-time display |
|
|
Brightness adjustment |
256 level manual/automatic |
|
| Driver chip mode |
Buffer 74HC245, decoding line tube 7258, dual latch constant current chip |
|
More LED Display Module Parameter
Pixel Pitch (mm) : P1.25、P1.53、P1.86、P1.875、P2.0、P2.5、P3.0、P3.076、P3.91、P4、P5
| Parameter | Indoor Full Color Display Module | ||||||||||||||
| Item | P1.25 | P1.53 | P1.86 | P1.875 | P2.0 | P2.5 | P2.5 | P2.604 | P2.976 | P3 | P3.076 | P3.91 | P4 | P4 | P5 |
| Module size(mm) | 320X160 | 320X160 | 320X160 | 240x240 | 320x160 | 320x160 | 320x160 | 250X250 | 250X250 | 192x192 | 320x160 | 250x250 | 320x160 | 256x256 | 320x160 |
| Pixel Pitch(mm) | 1.25 | 1.53 | 1.86 | 1.875 | 2.00 | 2.50 | 2.50 | 2.60 | 2.98 | 3.00 | 3.076 | 3.91 | 4.00 | 4.00 | 5.00 |
| SMD | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
| Scan | 1/64 | 1/52 | 1/43 | 1/64 | 1/40 | 1/32 | 1/64 | 1/32 | 1/21 | 1/32 | 1/26 | 1/16 | 1/20 | 1/32 | 1/16 |
| Dots | 256x128 | 208x104 | 172x86 | 128x128 | 160x80 | 128x64 | 128x64 | 96X96 | 84X84 | 64x64 | 104x52 | 64x64 | 80x40 | 64x64 | 64X32 |
| Pixel Density(Dots/㎡) | 640000 | 422533 | 288926 | 284444 | 250000 | 160000 | 160000 | 147456 | 112896 | 111111 | 105620 | 65536 | 62500 | 62500 | 36864 |
| Brightness(cd/㎡) | 1000 | 800 | 600 | 600 | 600 | 500 | 500 | 800 | 800 | 550 | 600 | 700 | 800 | 300 | 500 |
| Weight(g) | 450±5 | 450±5 | 450±5 | 485±5 | 385±5 | 374±5 | 350±5 | 260±5 | 333±5 | 520±5 | 321±5 | 460±5 | |||
| Color temperture(k) | 3000-15960Adjustable | ||||||||||||||
| Refresh Rate(Hz) | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | 3840Hz | 3840Hz | 3840Hz | 1920Hz | 1920Hz | 1920Hz | 1920Hz | 1920Hz | 1920Hz | 1920Hz | 1920Hz |
| Warranty | 1 year | ||||||||||||||
Certetication of GOB LED Modules
72+ Hours Aging Tests
72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability the GOB LED display screen modules and ensure the LED display screen modules without broken leds
Various Pixel Pitch Avaliable
GOB LED display screen modules have all pixel available from P1.25mm, P1.538mm, P1.667mm, P1.86mm, P2mm, P2.5mm, P3mm, P3.91mm, P4mm, P5mm, P6mm, P8mm, P10mm.
Self- owned industrial park
Fujian Hoozoe Optoelectronics Co.,ltd, which specialized in full range LED display screen module producing and solutions supply with 15 years, self-owned industrial park and automatic production lines help cost and production time saving.
Our Service
Supply OEM & ODM service; 7x24 online service, every year orgnize technical team global inspection to help to solve problems.
Advantage of GOB LED Display Module
1. Superior Image Quality and Vibrancy
High Resolution and Pixel Density (Pitch): GOB LED display screen modules have a very small pixel pitch (the distance between the centers of two adjacent pixels, e.g., P1.2, P1.5, P2.5). This allows for a high pixel density, meaning incredibly sharp and detailed images, even when viewed up close. Text, graphics, and videos appear crisp and clear.
Rich, Saturated Colors: Utilizing high-quality SMD (Surface-Mounted Device) LEDs that combine red, green, and blue chips into a single unit, these led display screen modules can produce a vast spectrum of colors (often billions of colors). This results in stunningly vibrant and lifelike imagery that captures attention.
Excellent Brightness and Contrast: Our LED display screen modules are engineered with optimal brightness levels (measured in nits) for indoor use. They are bright enough to be clearly visible under ambient indoor lighting without being overpowering or causing eye strain. Modern LED display screen modules also feature better contrast ratios, making blacks appear deeper and colors pop.
2. Seamless and Large-Scale LED Display Screen Modules Capability

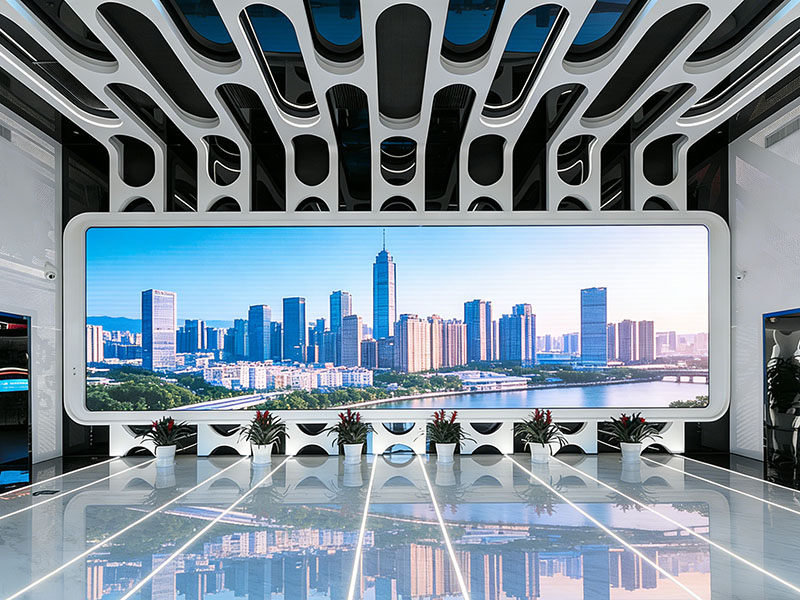

LED Display Screen Modules Design: The primary advantage of a "LED display screen module" is its scalability. Individual LED display screen modules are seamlessly tiled together to create a LED video wall of virtually any size or aspect ratio without bezels or gaps, unlike traditional TVs or projectors.
Customized Size and Shape: This modularity allows for creative installations, including curved walls, columns, and other non-standard shapes to fit unique architectural spaces.
3. Reliability and Longevity
Designed for Continuous Operation: High-quality indoor GOB LED display screen modules are built to run for extended periods (often 10+ hours a day) without image burn-in. They have a long lifespan, typically rated at 100,000 hours.
Low Power Consumption and Heat Output: Compared to older display technologies, modern LED display screen modules are highly energy-efficient. Their low heat output is a critical advantage for indoor environments, reducing the need for excessive cooling and making them safe and comfortable
4. Versatility in Content and Application
Dynamic Content: They can effortlessly play any digital content—live video feeds, animated graphics, social media streams, real-time data, and more. This is far more engaging than static posters or prints.
Interactive Potential: Can be easily integrated with sensors, touch overlays, and software to create interactive experiences for customers in retail stores or visitors in museums.
5. Professional and Corporate Benefits

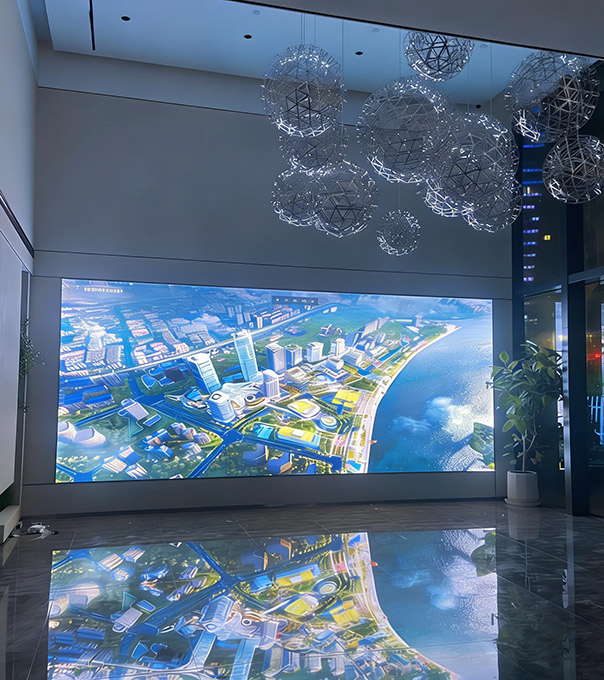

Brand Enhancement and Impact: A high-quality LED display screen video wall makes a powerful statement about a company's innovation and modernity. It's a premier tool for branding, advertising, and impressing clients in a corporate lobby.
Effective Information Dissemination: Perfect for control rooms, stock exchanges, and emergency operation centers where relaying real-time information clearly and reliably is critical.

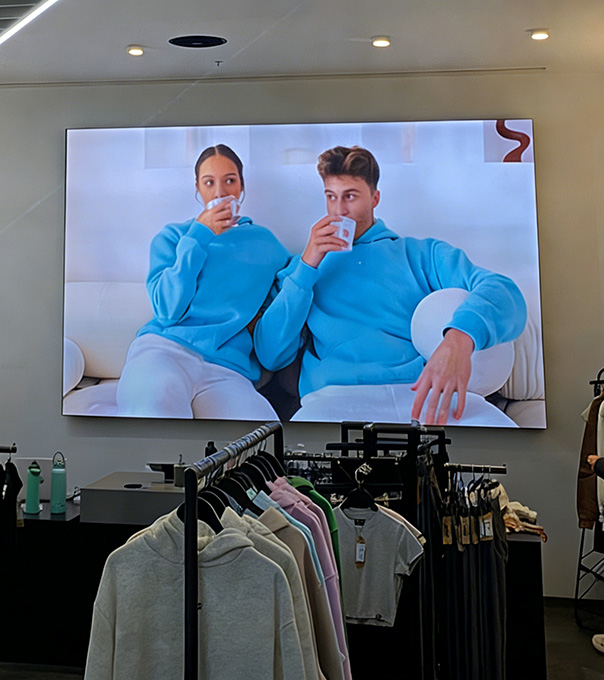

Increased Engagement in Retail: In stores, they are proven to attract attention, increase dwell time, and effectively promote products or promotions, leading to higher conversion rates.
Packing and Delivery of GOB LED Module Screen Display
GOB LED Display Screen is packaged with wooden cases or flight case.
1. Wooden case: covered with eco-friendly wood, with anti-collision EPE foams inside, protect products from damage during transportation.
2. Flight case: hard outer fireproof frame with inner EVA soft rebound material, with durable wheels at the bottom, convenient and safe moving.
