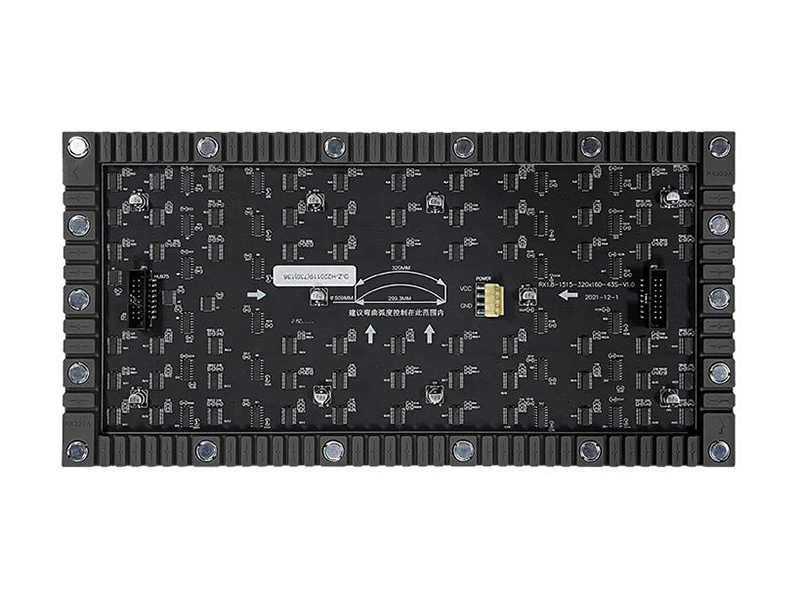

SMD P1.86 Flexible LED Module

An economical yet high-performance flexible LED solution, delivering exceptional value for large-scale projects where resolution and budget are equally important. Its 1.8604mm pixel pitch provides a perfect blend of clarity and cost-effectiveness for both flat and curved installations.

Parámetros del producto

marca :
Hoozoe
Modelo :
SMD P1.86 Flexible LED Module
Pedido (MOQ) :
80 pcs
Pago :
TT
Origen del producto :
Zhangzhou Fujian
Color :
Full color
Puerto de embarque :
Xiamen
Plazo de entrega :
7-15 days
Peso :
256g

CONSULTE AHORA

Features

Optimal Pixel Pitch: 1.8604mm spacing ensures clear and detailed images for standard viewing distances (typically 5-15 meters), making it an outstanding value-for-money choice for sizeable display areas.

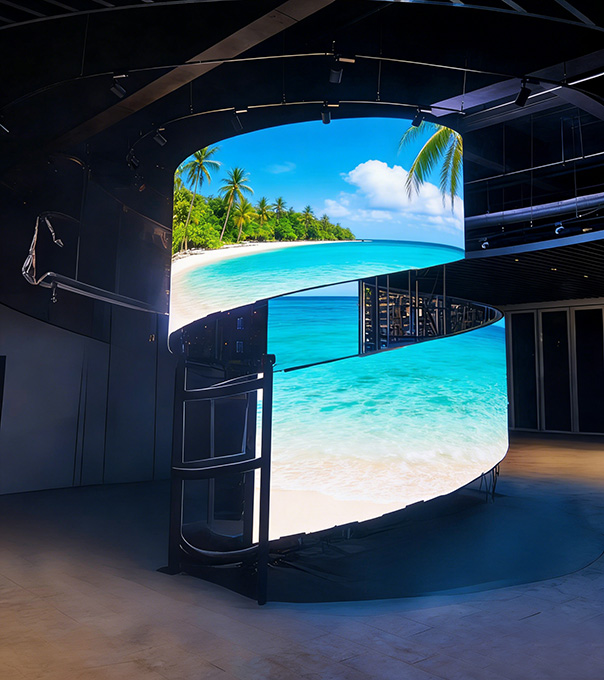

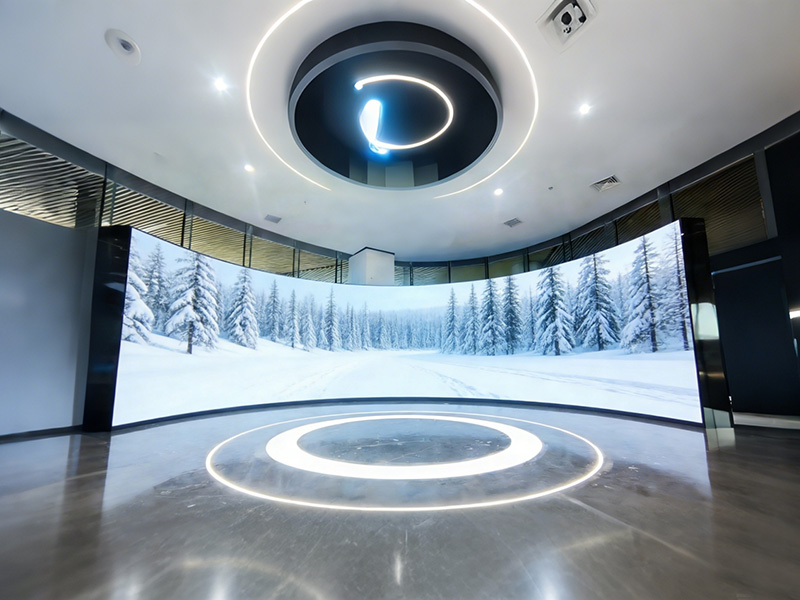

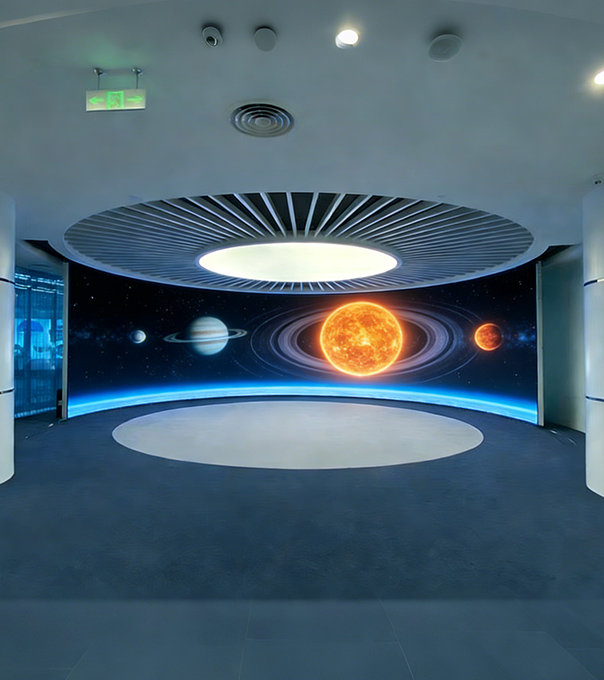

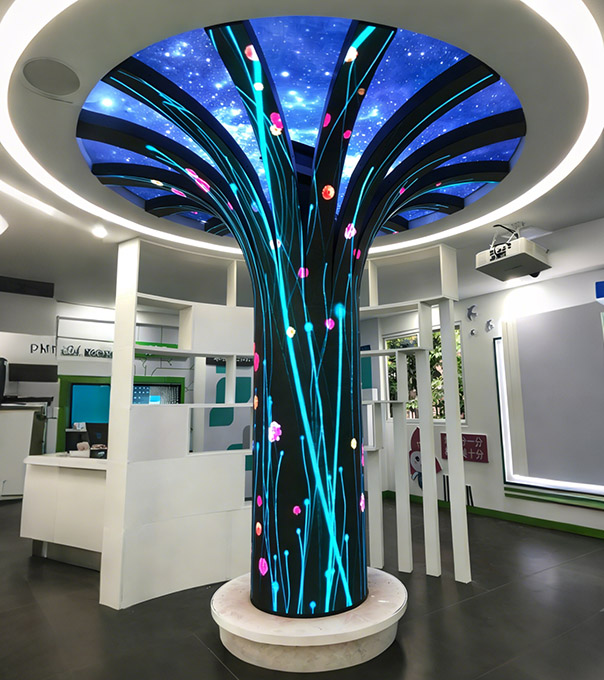

True Flexible Design: The bendable module unlocks creative freedom, allowing seamless deployment on curved surfaces such as columns, arches, and custom-shaped structures.

Professional Image Quality: High refresh rate (≥3840Hz) ensures flicker-free content capture and playback. With consistent brightness and color achieved through factory calibration, it delivers a smooth and uniform visual experience.

Durable & Easy to Install: Built with robust SMD LEDs for reliable operation. Its lightweight, modular design facilitates quick assembly, flexible front/rear maintenance, and efficient large-scale project deployment.

Ideal for: Large corporate lobbies, shopping mall media walls, event and stage backdrops, broadcast studios, control rooms, and other applications that require a balance of creative design, visual impact, and project budget.

Parameter

	Parameter Name	Product Parameter
Screen	Maximum power consumption	≤650 W/㎡
	Usage environment	Indoor
	Viewing distance	≥1-12m
	Blind spot rate	Less than 0.02%
	Brightness	≥ 500 cd/㎡
	Average power consumption of the screen	270 W/㎡
	Horizontal viewing angle of screen	160±10 degree
	Vertical viewing angle of the screen	120±10 degree
Module	Pixel Pitch	1.8604mm
	Pixel Density	288926 Dots/㎡
	Resolution	172x86=14792 Dots
	Structural characteristics	Integrated light drive system
	Pixel composition	1R1G1B
	Drive mode	1/43 scan constant current drive
	Input voltage	4.2-5 V
	Kit materials	Polycarbonate PC material
	Weight	256 g
	Power of unit module	<20 W
	Size (Long, Wide, and Thick)	3201607.6（mm)
	Maximum current	<4.7 A
	Use 4.2V/5V Switching Power Supply with Load Quantity	<6pieces P1.8604 full-color unit boards
System	Frame Frequency	>60 frames per second
	Refresh frequency	≥3840Hz
	Control mode	Computer control, one-to-one correspondence point by point, video synchronization, real-time display
	Brightness adjustment	256 level manual/automatic
Driver chip mode	Buffer 74HC245, transistor 7559, PWM constant current FM6363/LS9929
