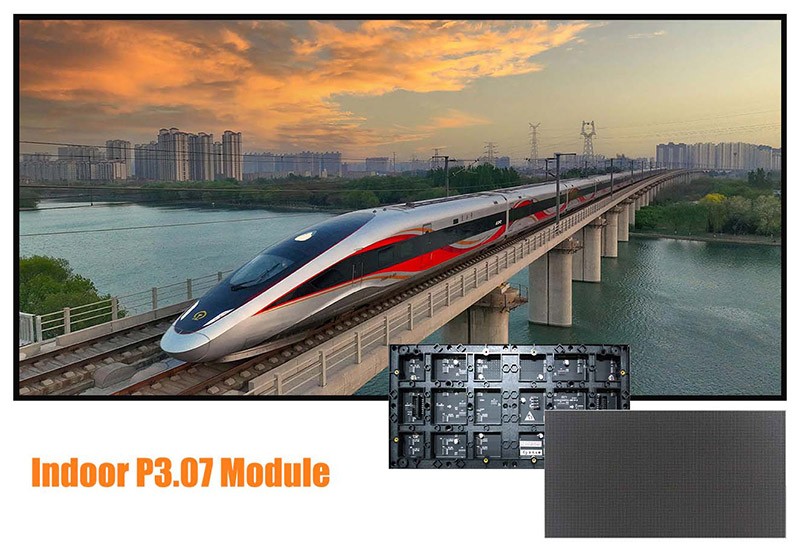

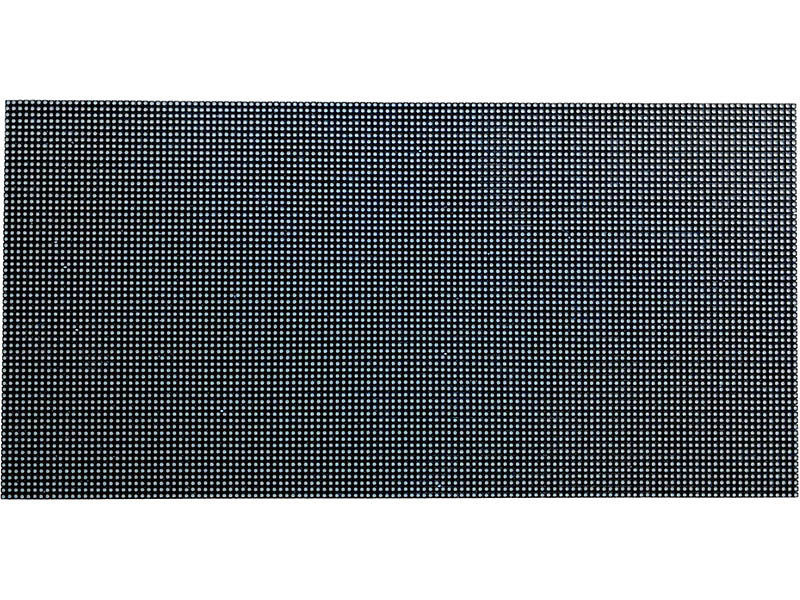

The SMD Indoor P3.07 LED Full Color Module is a reliable and cost-optimized display solution designed for large-format indoor installations where clarity at medium to long viewing distances is essential. With a precise pixel pitch of 3.077 mm, it delivers bright, vibrant, and legible visuals, making it ideal for environments that require impactful communication over wider areas.
marca :
HoozoeModelo :
SMD Indoor P3.07 LED Full Color ModulePedido (MOQ) :
50Pago :
TTOrigen del producto :
ZhangzhouColor :
Full colorPuerto de embarque :
Xiamen/ShenzhenPlazo de entrega :
10 daysPeso :
333gFeatures
Pixel Pitch:
Featuring a precise 3.077 mm pixel pitch, this module offers an exceptional balance of image clarity, viewing comfort, and cost-efficiency, making it a highly practical solution for large-scale indoor display projects where value and performance are prioritized.
High Resolution & Detail:
Its optimized pixel configuration delivers bright, vivid, and well-defined visuals, capably supporting high-definition video playback, dynamic graphics, and detailed informational content for effective communication at intended viewing ranges.
Optimal Viewing Distance:
Engineered for mid- to long-range viewing environments, it provides a seamless and comfortable viewing experience, effectively minimizing visible pixelation for audiences positioned from several meters to beyond ten meters away.
Reliable Technology:
Constructed with durable Surface-Mount Device (SMD) packaging, the module guarantees consistent color reproduction, excellent screen uniformity, and dependable long-term operational stability, ensuring sustained performance in daily use.
Typical Applications:
Ideal for large-format installations in spaces such as corporate auditoriums, university lecture halls, shopping mall atriums, hotel banquet venues, transportation terminals, and indoor digital signage networks.
Parameter
| Parameter Name | Product Parameter | |
| Screen | Maximum power consumption | 390 W/㎡ |
|
Usage environment |
Indoor | |
|
Viewing distance |
≥3m | |
|
Blind spot rate |
Less than 0.03% | |
| Brightness | > 600 cd/㎡ | |
| Average power consumption of the screen | 110-195 W/㎡ | |
| Horizontal viewing angle of screen | 120±10 degree | |
|
Vertical viewing angle of the screen |
120±10 degree | |
| Module |
Pixel Pitch |
3.077mm |
|
Pixel Density |
105620 Dots/㎡ | |
| Resolution | 104x52=5408 Dots | |
| Structural characteristics | Integrated light drive system | |
| Pixel composition | 1R1G1B | |
| Drive mode | 1/26 scan constant current drive | |
| Input voltage | 4.5-5V | |
|
Kit materials |
Polycarbonate PC material | |
| Weight | 333 g | |
| Power of unit module | <20 W | |
| Size (Long, Wide, and Thick) | 320*160*14.3（mm) | |
| Maximum current | <4 A | |
|
Use 4.2V/5V Switching Power Supply with Load Quantity |
≤8 pieces P3.077 full-color unit boards | |
|
System |
Frame Frequency |
>60 frames per second |
|
Refresh frequency |
6353 load 208 points 3840Hz 6124 load 104 points 1920Hz |
|
|
Control mode |
Computer control, one-to-one correspondence point by point, video synchronization, real-time display |
|
|
Brightness adjustment |
256 level manual/automatic |
|

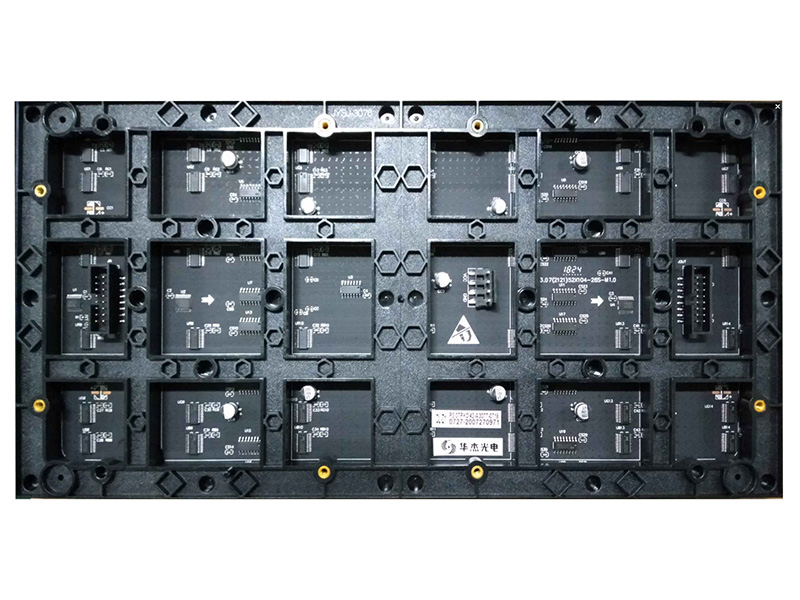

| Driver chip mode | Buffer 74HC245, decoding transistor 7258, PWM high refresh constant current chip FM6353/ICN2153, dual latch FM6124 | |
