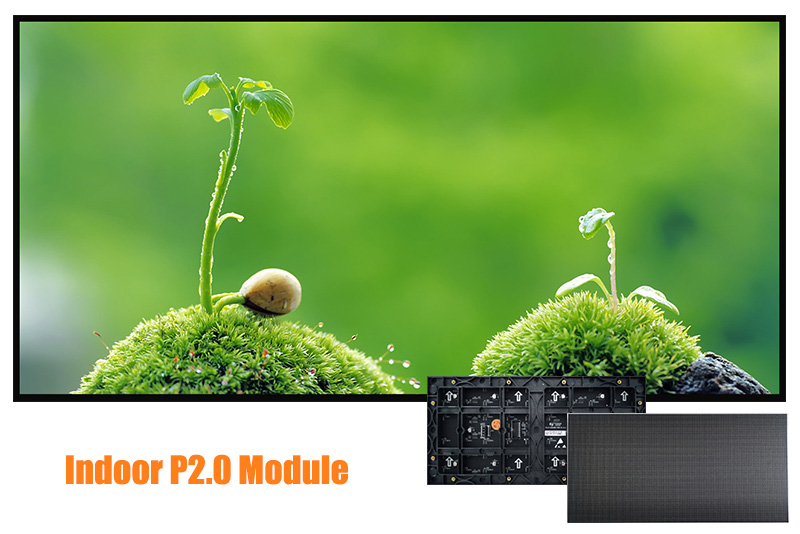

SMD Indoor P2 LED Full Color Module

Offering a 2mm pixel pitch, this SMD Indoor P2 LED Full Color Module delivers clear visuals for medium viewing distances. With reliable SMD packaging and excellent color uniformity, it ensures seamless integration and consistent performance in professional settings such as control rooms, corporate lobbies, and retail displays.

Parámetros del producto

marca :
Hoozoe
Modelo :
SMD Indoor P2 LED Full Color Module
Pedido (MOQ) :
50
Pago :
TT
Origen del producto :
Zhangzhou
Color :
Full color
Puerto de embarque :
Xiamen/Shenzhen
Plazo de entrega :
10 days
Peso :
450g

CONSULTE AHORA

Features

Pixel Pitch:
Featuring a 2.0 mm pixel pitch, it provides an optimal balance of clear image quality and cost-effectiveness for a wide range of professional indoor applications.

High Resolution & Detail:
The fine pixel layout delivers sharp and vivid visuals, perfectly suited for high-definition video content, dynamic graphics, and detailed data presentation.

Optimal Viewing Distance:
Engineered for mid-range viewing distances, it ensures a smooth, seamless image free from visible pixelation, ideal for environments where viewers are positioned a few meters away.

Reliable Technology:
Utilizing advanced Surface-Mount Device (SMD) packaging, the module guarantees consistent color performance, superior uniformity, and enhanced long-term durability and stability.

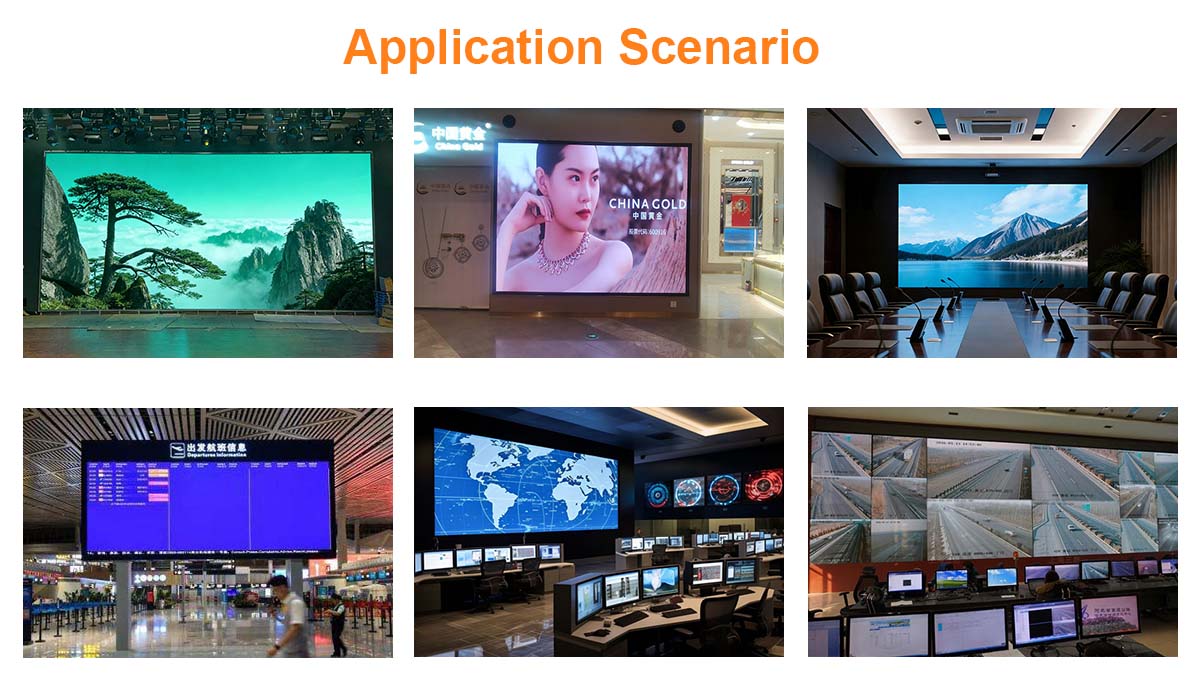

Typical Applications:
Ideal for professional and commercial environments, including corporate lobbies, conference rooms, control centers, retail stores, hotels, and digital signage installations.

Parameter

	Parameter Name	Product Parameter
Screen	Maximum power consumption	490 W/㎡
	Usage environment	Indoor
	Viewing distance	≥2.5m
	Blind spot rate	Less than 0.03%
	Brightness	> 600 cd/㎡
	Average power consumption of the screen	200-290 W/㎡
	Horizontal viewing angle of screen	120±10 degree
	Vertical viewing angle of the screen	120±10 degree

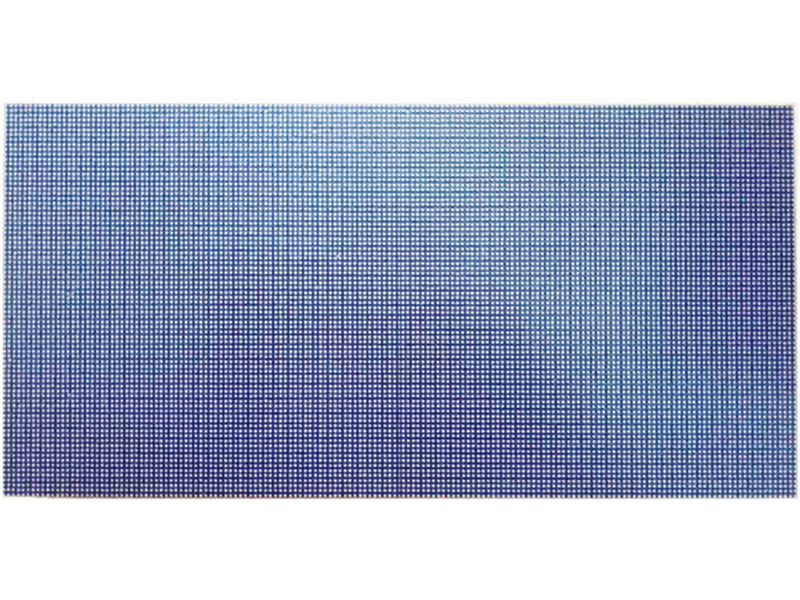

Module	Pixel Pitch	2.0mm
	Pixel Density	250000 Dots/㎡
	Resolution	160x80=12800 Dots

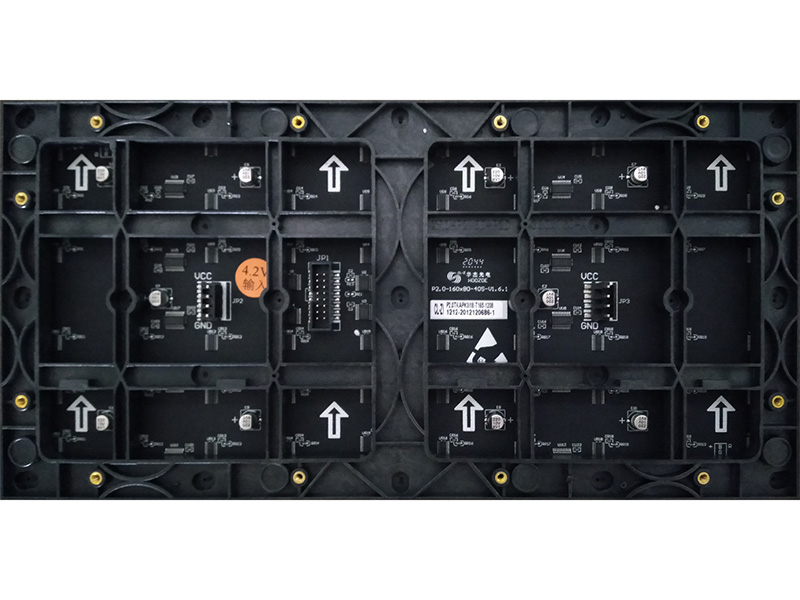

	Structural characteristics	Integrated light drive system
	Pixel composition	1R1G1B
	Drive mode	1/40 scan constant current drive
	Input voltage	4.2-5.5 V
	Kit materials	Polycarbonate PC material
	Weight	385 g
	Power of unit module	<26 W
	Size (Long, Wide, and Thick)	32016015（mm)
	Maximum current	<5.2 A
	Use 4.2V/5V Switching Power Supply with Load Quantity	<6 pieces P2 full-color unit boards
System	Frame Frequency	>60 frames per second
	Refresh frequency	≥3840Hz
	Control mode	Computer control, one-to-one correspondence point by point, video synchronization, real-time display
	Brightness adjustment	256 level manual/automatic
Driver chip mode	Buffer 74HC245, decoding line tube 5958, PWM constant current FM6363 or LS9930
