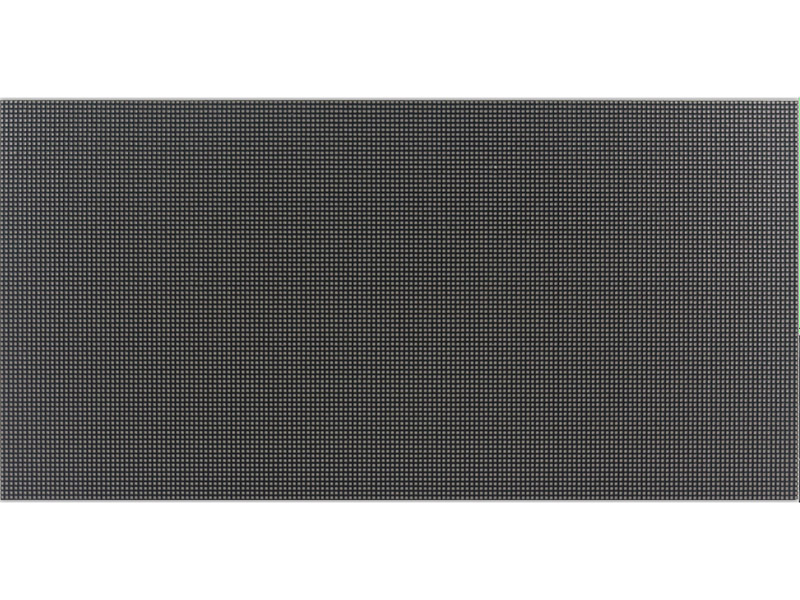

SMD Indoor P1.8604 LED Full Color Module

SMD Indoor P1.8604 LED Full Color Module

The SMD Indoor P1.8604 LED Full Color Module features a 1.8604 mm pixel pitch, delivering high-resolution, sharp visuals for close to medium viewing distances. Designed for seamless integration, it is ideal for professional environments such as control rooms, corporate lobbies, broadcast studios, and premium retail displays. Offering reliable performance and excellent color uniformity, it ensures a clear and immersive viewing experience in controlled indoor settings.

Parámetros del producto

marca :
Hoozoe
Modelo :
SMD Indoor P1.8604 LED Full Color Module
Pedido (MOQ) :
50
Pago :
TT
Origen del producto :
Zhangzhou
Color :
Full color
Puerto de embarque :
Xiamen/Shenzhen
Plazo de entrega :
10 days
Peso :
450g

CONSULTE AHORA

Features

Pixel Pitch:

Featuring a 1.86 mm distance between pixel centers, this pitch offers an optimal balance of high resolution and cost-effectiveness for professional indoor applications.

High Resolution & Detail:
The dense pixel layout delivers sharp, detailed visuals, making it ideal for high-definition video, graphics, and data content.

Optimal Viewing Distance:
Designed for close- to mid-range viewing, it ensures a smooth and clear image without visible pixelation, even at short distances.

Reliable Technology:
Built with surface-mount device (SMD) packaging, the module provides consistent color performance, excellent uniformity, and long-term durability.

Typical Applications:

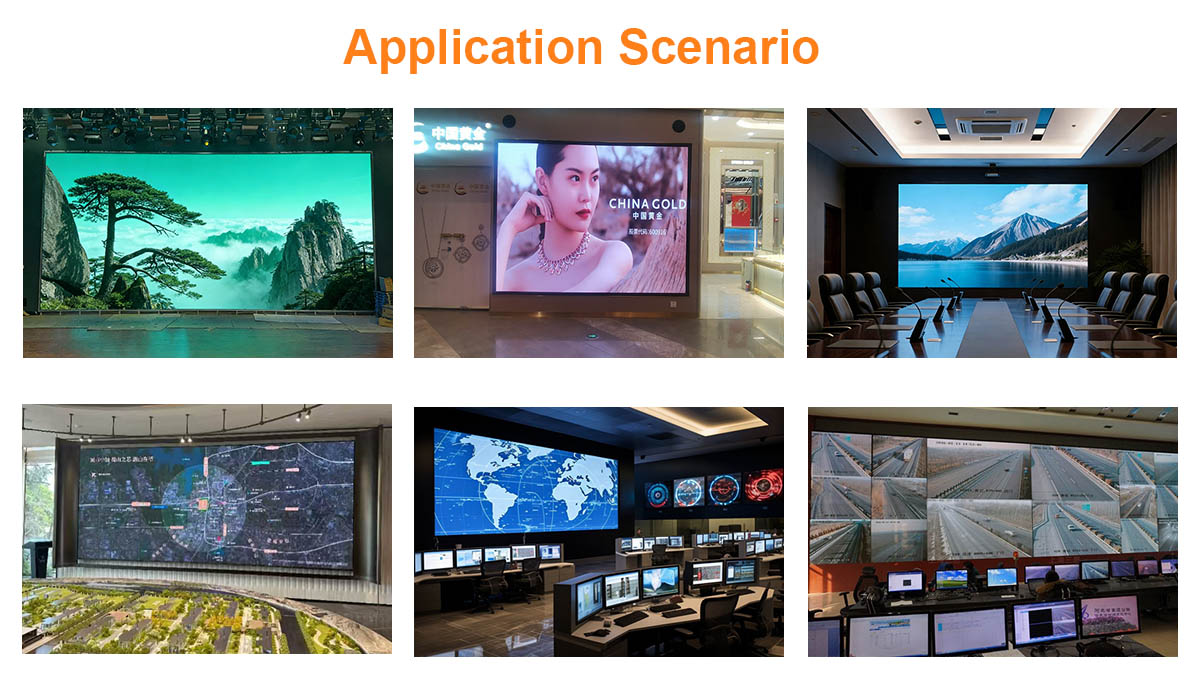

Well-suited for professional and high-end environments such as corporate lobbies, control rooms, broadcast studios, luxury retail spaces, and digital signage installations.

Parameter

	Parameter Name	Product Parameter
Screen	Maximum power consumption	500 W/㎡
	Usage environment	Indoor
	Viewing distance	≥2.0m
	Blind spot rate	Less than 0.02%
	Brightness	> 600 cd/㎡
	Average power consumption of the screen	180-250 W/㎡
	Horizontal viewing angle of screen	140±10 degree
	Vertical viewing angle of the screen	140±10 degree
Module	Pixel Pitch	1.8604 mm
	Pixel Density	288926 Dots/㎡
	Resolution	172x86=14792 Dots
	Structural characteristics	Integrated light drive system
	Pixel composition	1R1G1B
	Drive mode	1/43 scan constant current drive
	Input voltage	4.2-5 V
	Kit materials	Polycarbonate PC material
	Weight	450 g
	Power of unit module	<23.5 W
	Size (Long, Wide, and Thick)	32016014.5（mm)
	Maximum current	<4.7 A
	Use 4.2V/5V Switching Power Supply with Load Quantity	<6 pieces P1.8604 full-color unit boards
System	Frame Frequency	>60 frames per second
	Refresh frequency	≥3840Hz
	Control mode	Computer control, one-to-one correspondence point by point, video synchronization, real-time display
	Brightness adjustment	256 level manual/automatic

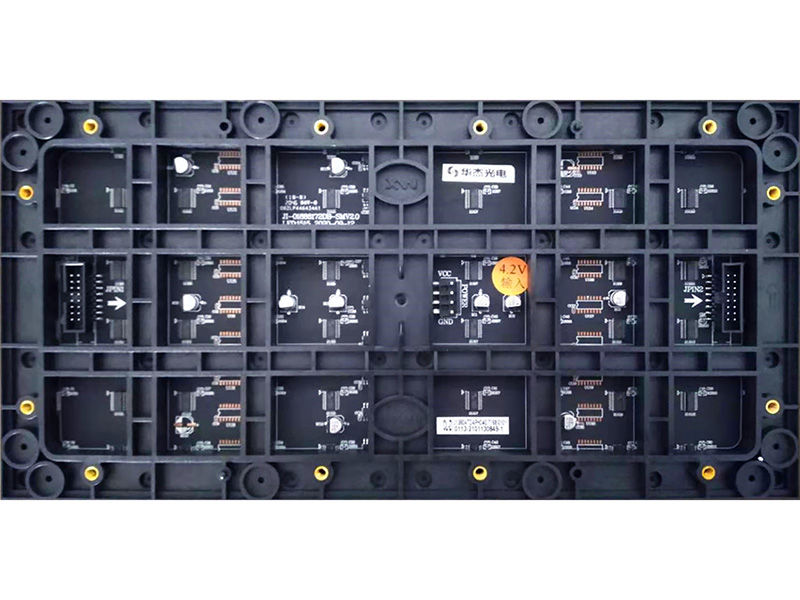

Driver chip mode	Buffer 74HC245, transistor 7559, PWM constant current FM6363/LS9929
