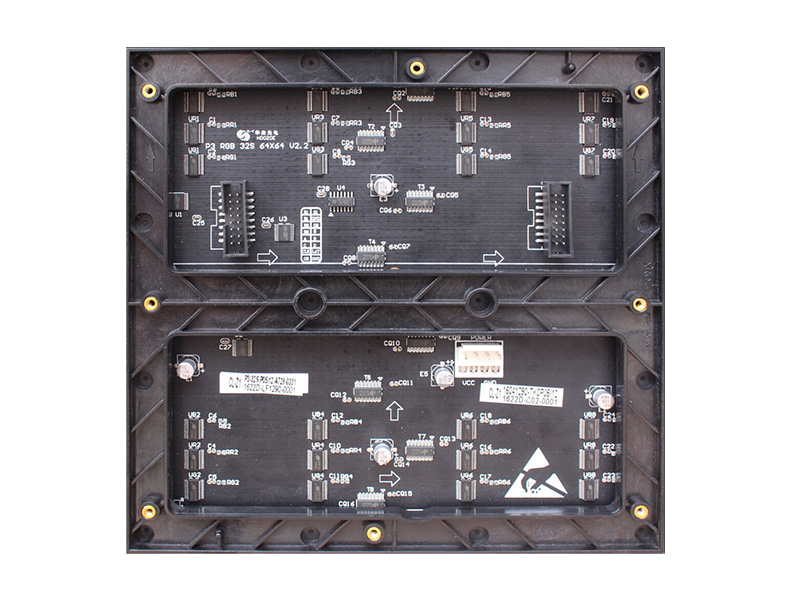

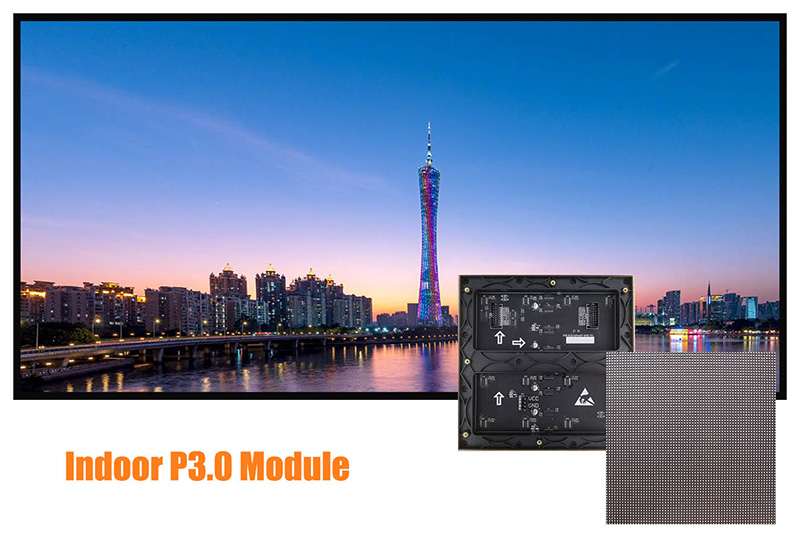

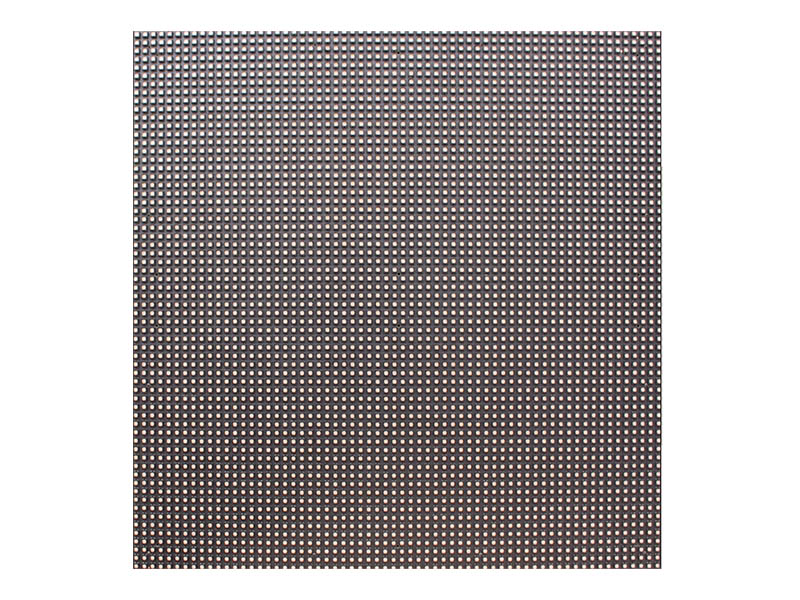

The SMD Indoor P3 LED Full Color Module is a cost-effective and reliable display solution designed for professional indoor applications where clear visuals and value are equally important. With a 3mm pixel pitch, it delivers bright, vibrant images ideal for medium to long viewing distances.
marca :
HoozoeModelo :
SMD Indoor P3 LED Full Color ModulePedido (MOQ) :
50Pago :
TTOrigen del producto :
ZhangzhouColor :
Full colorPuerto de embarque :
Xiamen/ShenzhenPlazo de entrega :
10 daysPeso :
274gFeatures
Pixel Pitch:
Featuring a 3.0 mm pixel pitch, this module offers an optimal balance of clear visibility and cost-effectiveness, making it a practical and economical solution for a wide range of large-scale indoor display applications.
High Resolution & Detail:
Its efficient pixel configuration delivers bright and legible visuals, reliably supporting video content, dynamic graphics, and textual information for clear communication at designated viewing ranges.
Optimal Viewing Distance:
Engineered for mid- to long-range viewing, it provides a coherent and comfortable viewing experience, effectively eliminating noticeable pixelation for audiences positioned several meters to tens of meters away.
Reliable Technology:
Built with durable Surface-Mount Device (SMD) packaging, the module ensures stable color performance, good overall screen uniformity, and robust long-term operational reliability.
Typical Applications:
Well-suited for large-format installations in environments such as school auditoriums, corporate training halls, shopping malls, hotel conference venues, transportation hubs, and indoor information signage systems.
Parameter
| Parameter Name | Product Parameter | |
| Screen | Maximum power consumption | 540 W/㎡ |
|
Usage environment |
Indoor | |
|
Viewing distance |
≥3m | |
|
Blind spot rate |
Less than 0.03% | |
| Brightness | > 550 cd/㎡ | |
| Average power consumption of the screen | 280-330 W/㎡ | |
| Horizontal viewing angle of screen | 120±10 degree | |
|
Vertical viewing angle of the screen |
120±10 degree | |
| Module |
Pixel Pitch |
3.0mm |
|
Pixel Density |
111111 Dots/㎡ | |
| Resolution | 64x64=4096 Dots | |
| Structural characteristics | Integrated light drive system | |
| Pixel composition | 1R1G1B | |
| Drive mode | 1/32 scan constant current drive | |
| Input voltage | 4.8-5V | |
|
Kit materials |
Polycarbonate PC material | |
| Weight | 274 g | |
| Power of unit module | 20 W | |
| Size (Long, Wide, and Thick) | 192*192*12.2（mm) | |
| Maximum current | <4 A | |
|
Use 4.2V/5V Switching Power Supply with Load Quantity |
<9 pieces P3 full-color unit boards | |
|
System |
Frame Frequency |
>60 frames per second |
|
Refresh frequency |
Carrying 64 points at 2880Hz or Carrying 128 points at 1440Hz |
|
|
Control mode |
Computer control, one-to-one correspondence point by point, video synchronization, real-time display |
|
|
Brightness adjustment |
256 level manual/automatic |
|
| Driver chip mode | Buffer 74HC245, decoding transistor 7258, dual latch or PWM functional constant current IC | |
